Hydrophobic foldable intraocular lens
Smooth and controlled unfolding
UV blocker
Square edge for PCO reduction
Optical designaspheric equiconvex
Configurationsingle-piece
Total diameter13,0 mm
Optical diameter6,0 mm
Modified C haptic design
Constant A118,7
ACD5,08 mm
Haptic angulation7°
Diopters+10,0 to +30,0 (0.5 D increments)
Materialhydrophobic acrylic
Refractive index1,4855 at 20°C
Anvisa registration 10220640015
Hydrophilic foldable intraocular lens
Smooth and controlled unfolding
UV blocker
Square edge for PCO reduction
Optical designspherical equiconvex
Configurationsingle-piece
Total diameter12,5 mm
Optical diameter6,0 mm
Modified C haptic design
Constant A118,2
ACD5,08 mm
Haptic angulation7°
Diopters+10,0 to +30,0 D (0.5 increments)
Materialhydrophilic acrylic
Water content26% ± 1% (at 20°C)
Refractive index1,460 (hydrated) at 20°C
Anvisa registration 10220640006
Injector for foldable intraocular lens
Precise and safe manipulation
Easy lens insertion into cartridge
Excellent visibility throughout insertion
Silicone stopper ensures precise limit
Model External diameter of
cartridge tip		 Recommended
diopter		 Recommended
incision size*
EnLite 2.2 1.85 ± 0.04 mm ≤ +15.0 D 2.2 to 2.6 mm
EnLite 2.4 2.15 ± 0.04 mm ≤ +26.0 D 2.4 to 3.0 mm
EnLite 2.6 2.46 ± 0.05 mm ≤ +30.0 D 2.6 to 3.2 mm
*Incision size related to the device model may vary depending on the patient and surgical technique employed.
Anvisa registration 10220640018

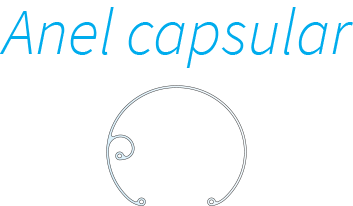

Capsular bag stabilization rings
Complete line of sizes and diameters
MaterialPMMA
Configuration Model Open
diameter (mm)		 Collapsed
diameter (mm)
CR 10 12.00 10.00
CR 12 14.00 12.00
CR 12.75 14.40 12.75
CR 11 ER 13.40 11.00
CR 11 EL 13.40 11.00
CR 11 ERL 13.40 11.00
Anvisa registration 10220640009

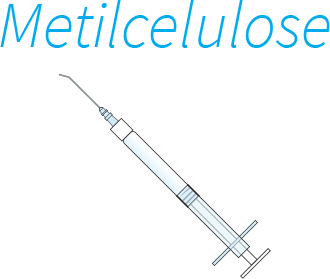

Viscoelastic
Dispersive
Glass syringe
Disposable sterile cannula
100% transparent
Good endothelial protection
No refrigeration required
Content2.5 ml
Concentration2%
Viscosity5,000 to 9,500 cP
Anvisa registration 10220640012

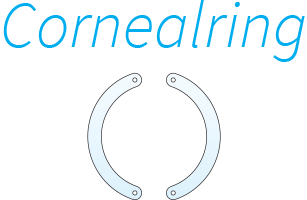

Intrastromal segments
Next-generation corneal segment
Anatomical profile, preserving corneal integrity
Anti-glare design
Stable postoperative outcome
MaterialPMMA
Base width0.65 mm (650 µm)
Number of apertures2 (one at each end)
Aperture diameter0.18 – 0.20 mm
Diameters5 mm (internal 4.7 mm and external 6.0 mm)
6 mm (internal 5.6 mm and external 6.9 mm)
Arcs
90° 120° 155° 220° 300°
Thicknesses
150 μm ● ● ● ● ●
200 μm ● ● ● ● ●
250 μm ● ● ● ● ●
300 μm ● ● ● ● ●
350 μm ● ● ● ● ●
Anvisa registration 10220640005

Product Catalogs

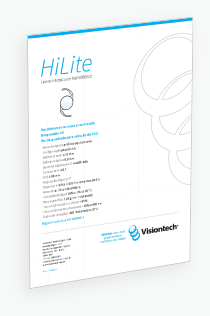

Hilite

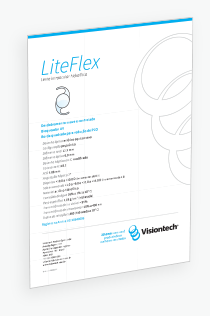

Liteflex

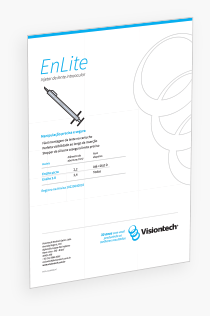

Enlite

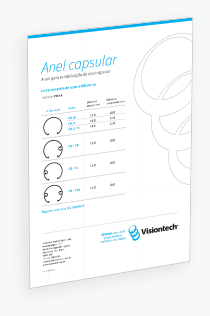

Capsular Ring

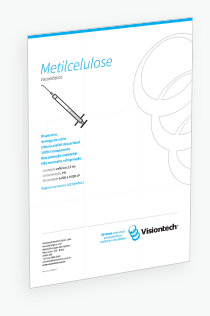

Methylcellulose

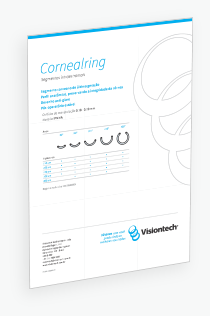

Corneal Ring
